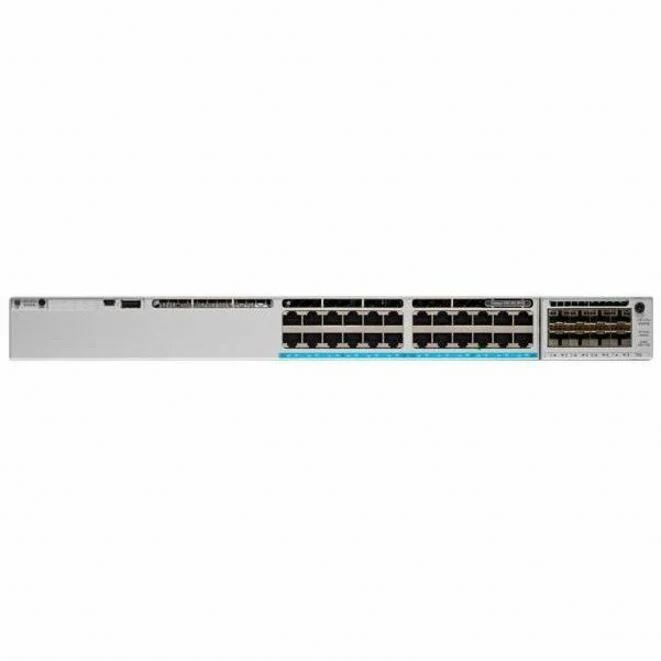

Cisco Catalyst C9300X-24HX-E 24-Port Multigigabit PoE+ Layer 3 Switch
- 24x Multigigabit Ethernet (100M/1G/2.5G/5G/10G) Ports
- Full PoE+ (802.3at) Support across all ports
- StackWise-1T Stacking Technology (Up to 1 Tbps bandwidth)
- Modular uplink options (Supports up to 100G)
- Layer 3 Advanced Security & Cryptographic Routing
- Switching Capacity of up to 480 Gbps
General Overview
The Cisco Catalyst C9300X-24HX-E is a premier, stackable Layer 3 enterprise switch designed for high-density, secure multigigabit deployments. Outfitted with 24 universal ports capable of delivering up to 10G Multigigabit speeds (100M/1G/2.5G/5G/10G) alongside robust PoE+ support, this appliance is the ultimate backbone for modern bandwidth-intensive networks.
Built on Cisco’s advanced Unified Access Data Plane (UADP) ASIC architecture, the 9300X series features industry-leading StackWise-1T technology, enabling up to 1 Tbps of stacking bandwidth. Running on Cisco IOS-XE, it provides robust hardware-level security, secure cryptographic routing, and advanced threat defense at the access layer.
| Brand | Cisco |
|---|---|
| Product Line | Cisco Catalyst |
| Model | C9300X-24HX-E |
| Switch Type | Layer 3 Managed Stackable |
| Total Ports | 24x Multigigabit (100M/1G/2.5G/5G/10G) |
| PoE Standard | PoE+ (802.3at) / UPOE |
| Stacking Bandwidth | Up to 1 Tbps (StackWise-1T) |
| Switching Capacity | 480 Gbps |
| Operating System | Cisco IOS-XE |
| License Level | Network Essentials |
| Condition | Certified Refurbished |
This hardware is engineered specifically for the following deployments:
- High-Density Server Aggregation and Core Routing
- Next-Gen Wi-Fi 6/6E Wireless Access Point deployment
- High-Performance Corporate LAN Backbones
- Secure Government and Financial Branch Offices
